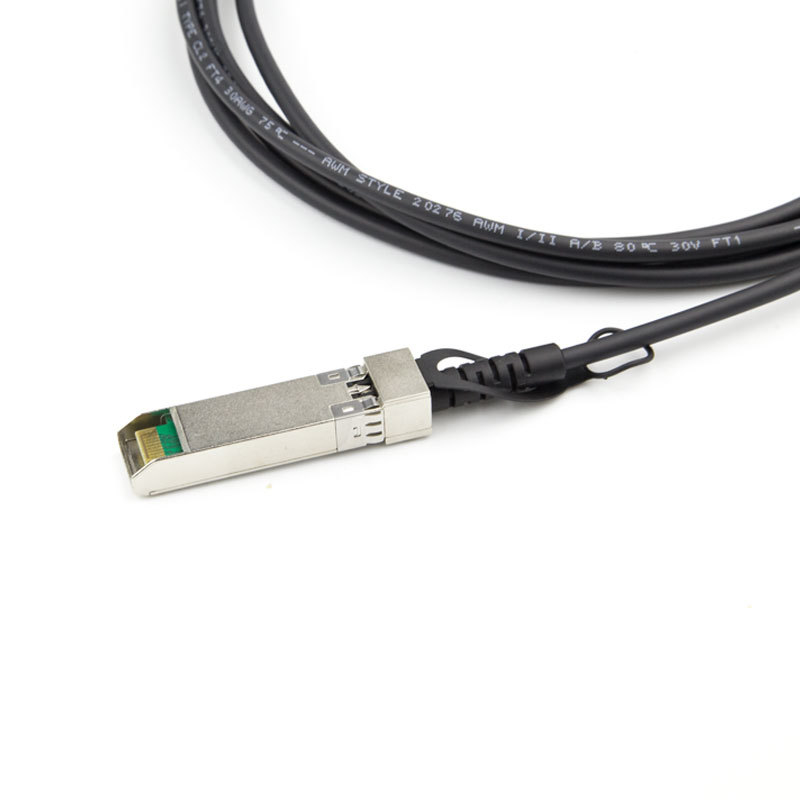

Test Type

Test Item

Target

Reference

Electrical Characteristics

Differential Mode RL(SDDII)

0.01<f<4.1 ; < -12+2*SQRT(f )

4. 1<f<11. 1 ; <-6.3+13*log10(f/5.5)

Where f is in GHz

Measurements units: dB

SFF 8431

Common mode return loss (SCCII)

0.01<f<2.5 ; <-7+1.6(f )

2.5<f<11.1 ; <-3

Where f is in GHz

Measurements units: dB

SFF 8431

NEXT

<-26dB from 1MHz to 11GHz

/

Cable assembly Impedence

100+/ -100hm

Rise time of 30 ps (20 %- 80 %)

(20%~80 %)

Insertion Loss Deviation

-1dB≤ILD≤1dB

300KHz≤f≤6GHz

/

Environmental Characteristics

Operating Temperature

-40~85°C

Cable operating temp. range

Thermal Shock

Electrical performance meet the specification requirement

EIA-364-32D. Method A. TC-1. -55 10 85C,100 cycles, 15 min, dwells

Cyclic Temp. & Humidity

Electrical performance meet the specification requirement

EIA-364-31 Method III,Test Cond A

Salt spray

48 hours salt spraying after shell corrosive area less than 5%

EIA-364-26

Temperature Life

Performance meets the specification requirement

EIA-364-17B w/ RH, Damp heat 85C at 85% RH for 500 hours

Mechanical Characteristics

MechanicaI Vibration

Performance meets the specification requirement

EIA-364-28E.11 TC-VII, Test Cond. D 15minutes in X,Y,Z axis.

Cable Plug Retention in Cage

90N Min.

No functional damage to cable plug below 90N. Per SFF-8432 Rev 5.0

Cable Retention in Plug

90N Min.

EIA-455-6B

Mechanical Shock

Performance meets the specification requirement

Clamp and Shock per EIA-364-27B, TC-G, 3times in 6directions, 100g, 6ms

Cable plug Insertion

18N(Max.)

SFF-8432 Rev 5.0

Cable plug extraction

12.5N(Max.)

SFF-8432 Rev 5.0

Durability

50 Time. No evidence of physical damage

EIA-364-09; perform plug&unplug cycles Plug and Receptacle mate rate: 250times/hour
