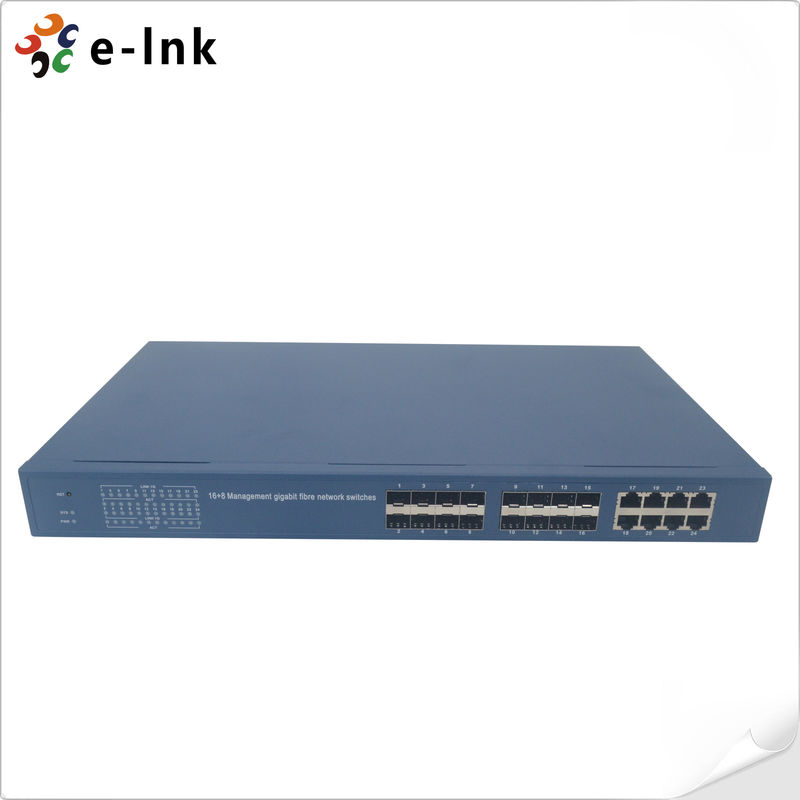

8G + 16SFP Management Gigabit Fiber Switch

Name: 8G + 16SFP Management Gigabit Fiber Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-FS168
Price: 75.00 USD
Availability: InStock

Dettagli del prodotto

Luogo di origine: Cina

Marca: E-link

Certificazione: CE, FCC, RoHS

Numero di modello: LNK-FS168

Termini di pagamento e di spedizione

Quantità di ordine minimo: 1 pz

Prezzo: Negotiated

Imballaggi particolari: Pacchetto standard di esportazione

Tempi di consegna: 5-12 giorni lavorativi

Termini di pagamento: T/T, Paypal

Capacità di alimentazione: 1000 pezzi/bocca

Ottieni il miglior prezzo

Contatta ora

Specificità

Descrizione

Specificità

Evidenziare:
                                                                                                                                                                                                                                                                                              8G Gigabit Fiber Switch, Management Gigabit Fiber Switch, 16SFP Gigabit Fiber Switch


Porti:	16 Porte ottiche SFP da 1000m e 8 porte RJ45 10/100/1000m	Tabella degli indirizzi VLAN:	4K
Tabella degli indirizzi MAC:	8K	Dimensioni:	440x230x44mm (telaio standard da 1u19 pollici)

Porti:	16 Porte ottiche SFP da 1000m e 8 porte RJ45 10/100/1000m
Tabella degli indirizzi VLAN:	4K
Tabella degli indirizzi MAC:	8K
Dimensioni:	440x230x44mm (telaio standard da 1u19 pollici)

Descrizione

8G + 16SFP Management Gigabit Fiber Switch

Advantage

► Support for 802.1x authentication, and to provide users with access to authentication

► Wire-speed filtering - Storage - forward mode, providing a true non-blocking switching structure

► Support the function of port mirroring, port gathering, port speed limit

► Support the port-based VLAN and IEEE802.1Q based on VLAN

► Storm suppression: can be set with the Broadcast, multicast, DLF traffic

Overview

16+8 Management Gigabit fiber network switch is a second, fourth layer gigabit managed switch,

provides 810/100M/1000M RJ45 ports and 16 1000M SFP optical ports. The hard ware supports

wire-speed switching of the second layer.

Technical Indexes

Product Type	16+8 Management gigabit fiber network switches
Support agreement	IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak
Maximum frame length	9216B
Ports	16 1000M SFP optical ports and 8 10/100/1000M RJ45 ports
Network Media	1000Base-LX: using long wavelength laser (1310nm) over multimode and single mode fiber, multimode fiber the maximum distance is 550m, single mode 10-24km.
	1000Base-SX: 62.5μm multimode fiber the maximum transmission distance of 275m, 50μm multimode fiber using the maximum transmission distance of 550 meters.
	10Base-T: 3 classes or more than 3 kinds UTP; (maximum transmission distance of 200m), 14880P / S
	100Base-TX: 5 Category UTP; (maximum transmission distance of 100m), 148800P / S
	1000Base-T: CAT-5E UTP or Category 6 UTP; (maximum transmission distance of 100m), 1488000P / S
VLAN Address Table	4K
MAC address table	8K
Cache	32Mbits
Backplane bandwidth	52Gbit
Filtering and forwarding rate	10Mbps:14880pps
	100Mbps:148800pps
	1000Mbps:1488000pps
Dimensions	440x230x44mm(1U19-inch standard chassis)
Use of the environment	Operating Temperature: 0℃～40℃;
	Humidity 10% ~ 90% non-condensing
	Storage temperature: -20℃~70℃; Storage Humidity 5% ~ 90% non-condensing
Power	Input :90-264VAC ,50-60HZ; output: 5V/12A
Power consumption	Power consumption: 60W
