Mini 4K HDMI Fiber Extender with RS232 & External Audio

Name: Mini 4K HDMI Fiber Extender with RS232 & External Audio
Brand: E-link China Technology Co.,LTD
SKU: Serie LNK-MHRA4K
Price: 134.00 USD
Availability: InStock

Dettagli del prodotto

Luogo di origine: Cina

Marca: E-link

Certificazione: CE, FCC, RoHS

Numero di modello: Serie LNK-MHRA4K

Documento: E-link LNK-MHRA4K Series Mi....0.pdf

Termini di pagamento e di spedizione

Quantità di ordine minimo: 1 pezzi

Prezzo: Negoziabile

Imballaggi particolari: Imballaggio in cartone

Tempi di consegna: 3-12 giorni lavorativi

Termini di pagamento: L/C, T/T, Western Union, MoneyGram, PayPal

Capacità di alimentazione: 1000 pezzi/mese

Ottieni il miglior prezzo

Contatta ora

Specificità

Descrizione

Specificità

Evidenziare:
                                                                                                                                                                                                                                                                                                                                                                                                      RS232 Mini 4K HDMI Fiber Extender, External Audio HDMI Fiber Extender, 4K HDMI Fiber Extender


Alimentazione elettrica:	5 V CC, USB tipo C	Temperatura operativa:	-10 a + 50°C
Temperatura di conservazione:	-20 a + 80°C	Umidità:	RH da 5% a 90% (non condensante)
Peso:	60 g / 0,13 libbre	Dimensione (WxDxH):	2,87 x 1,73 x 0.69in (73x44x17mm)

Alimentazione elettrica:	5 V CC, USB tipo C
Temperatura operativa:	-10 a + 50°C
Temperatura di conservazione:	-20 a + 80°C
Umidità:	RH da 5% a 90% (non condensante)
Peso:	60 g / 0,13 libbre
Dimensione (WxDxH):	2,87 x 1,73 x 0.69in (73x44x17mm)

Descrizione

Mini 4K HDMI Fiber Extender with RS232 & External Audio

Advantages

► HDMI 1.4a and HDCP1.2 Support

► Uncompressed transmission, No delay, No losses

► DDC HPDT Signal Support

► Data rate up to 10.2Gbps

► Transmission distance up to 80km over fiber cable

► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0

► Support external stereo audio

► Support Serial RS232 Signal

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► Operating Case Temperature: -10~50°C

Overview

The LNK-MHRA4K Series 4K HDMI Fiber Extender are designed to support transmission of an uncompressed lossless HDMI 1.4a signal, RS232 signal and stereo audio over optical fiber up to distances of 80km, at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0.

The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

Technical Indexes

Type of Extender	Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals	HDMI
Connector	Female HDMI type A
Signal Support	HDMI 1.4a HDMI format standard and HDCP compliant
Video Support	Up to 720P/960P/1080p@60Hz, 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Chroma Subsampling	Max 38402160@60Hz (4:2:0) Max 38402160@30Hz (4:4:4, 4:2:2)
EDID	Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually
Audio Interface	3.5MM external stereo audio
RS232	3 Pin terminal, Baud rate ≤ 38400
Fiber Connector	SFP/LC
Bandwidth	10.2Gbps
Transmission Distance	300m (Over OM3 Fiber)
Transmission Distance	Up to 80km (Over Single-mode Fiber)
Operating Temperature	-10 to + 50°C
Storage Temperature	-20 to + 80°C
Humidity	5% to 90% RH (non-condensing)
MTBF	100,000 hours
Dimension (WxDxH)	2.87 x 1.73 x 0.69in (73x44x17mm)
Weight	60g / 0.13 lb
Power Supply	5V DC, USB Typ-C
Power dissipation	<5W
Safety Approvals	CE, FCC, Rohs

Order Information

Model	Description
Model	Description
LNK-MHRA4K-MM	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S20	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S40	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S80	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input

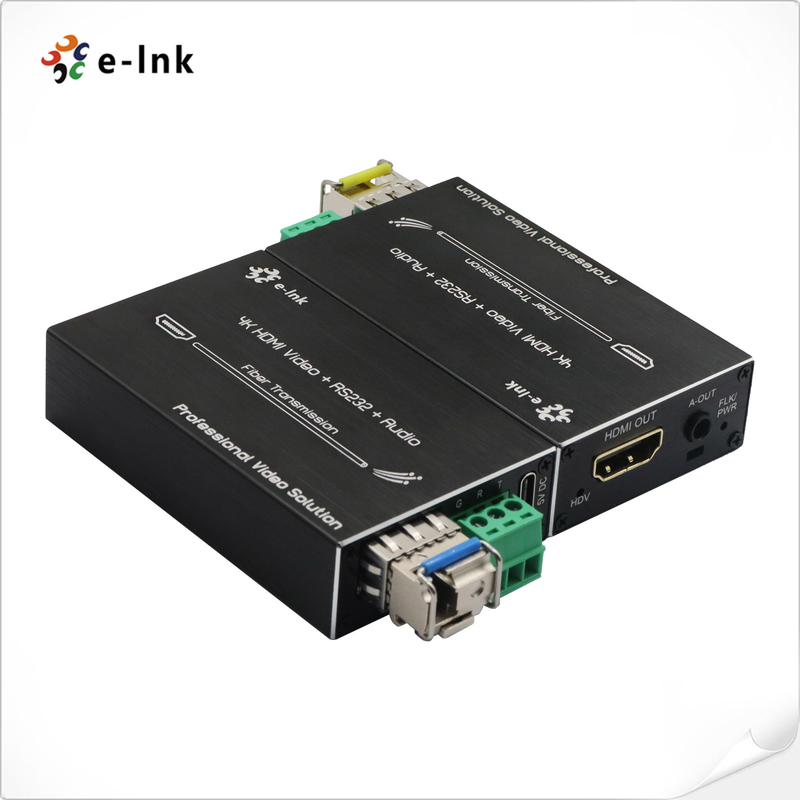

Mini 4K HDMI Fiber Extender with RS232 & External Audio 0

Application

Mini 4K HDMI Fiber Extender with RS232 & External Audio 1
