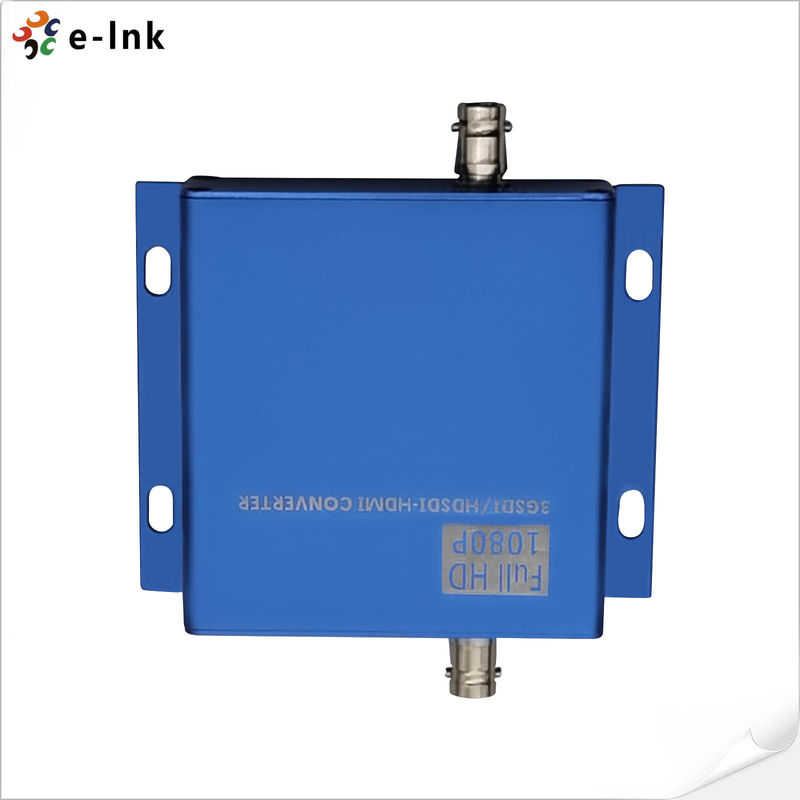

HD/3G-SDI to HDMI Converter with Loop Output

Name: HD/3G-SDI to HDMI Converter with Loop Output
Brand: E-link China Technology Co.,LTD
SKU: LNK-SSP
Price: 594.00 USD
Availability: InStock

Dettagli del prodotto

Place of Origin: China

Marca: E-link

Certificazione: ISO9001, CE, FCC, RoHS

Model Number: LNK-SSP

Documento: E-link HD 3G SDI to HDMI Co....0.pdf

Termini di pagamento e di spedizione

Minimum Order Quantity: 1pcs

Prezzo: Negoziabile

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Ottieni il miglior prezzo

Contatta ora

Specificità

Descrizione

Specificità

Evidenziare:

Dimensions (LxWxH):	82 x 87 x 28 mm	Weight:	9.8Kg (including Transmitter & Receiver)
Working Temperature:	-10℃～+60℃	Power Input:	DC 5V
Mounting Options::	Desktop/Wall mount	Power consumption:	<3W

Dimensions (LxWxH):	82 x 87 x 28 mm
Weight:	9.8Kg (including Transmitter & Receiver)
Working Temperature:	-10℃～+60℃
Power Input:	DC 5V
Mounting Options::	Desktop/Wall mount
Power consumption:	<3W

Descrizione

HD/3G-SDI to HDMI Converter with Loop Output

Product Advantages

► Support SD-SDI, HD-SDI, 3G-SDI input;

► Support 1ch SDI loop-out;

► Directly compatible with HD-SDI camera systems

► Use dedicated clock recovery circuit for repeater use;

► Adaptive SDI input resolution

► Audio and image sync output to HDMI interface;

► Built-in ESD protection circuit to prevent static damage;

► LED Status Indication to monitor the working conditions;

► Easy to install, plug and play;

Overview

The SDI-HDMI Converter is a device designed to convert a single HD digital interface (3G-SDI) signal into an HDMI signal. At the same time, the audio signal of the SDI is separated and embedded into the HDMI signal to realize the audio and image synchronous transmission It’s widely used in security system, video conference, broadcasting and live Events etc.

Technical Indexes

Video Input
Video interface	BNC/75Ω
Video Bits Rate	Max 3.2Gb/s
Differential gain (10%～90% APL)	<1%
Resolution	Max 1080P@60Hz
SDI standard	270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
	SMPTE425M3Gb/s Mapping(3G-SDI)
	SMPTE424M 3Gb/s serial interface(3G-SDI)
Video Output	HDMI
Electrical
Power Input	DC 5V
Power consumption	<3W
LED Indicator	SDI
LED Indicator	Power/HDMI
Mechanical
Dimensions (LxWxH)	82 x 87 x 28 mm
Weight	160g
Casing	Aluminum Case
Mounting Options	Desktop/Wall mount
Environmental
Working Temperature	-10℃～+60℃
Storage Temperature	-40℃～+80℃
Working Humidity	0~95%
MTBF	≥100000 hours

Ordering information
