HD/3G-SDI to HDMI Converter with Loop Output

Name: HD/3G-SDI to HDMI Converter with Loop Output
Brand: E-link China Technology Co.,LTD
SKU: LNK-Convert-Sony
Price: 594.00 USD
Availability: InStock

Dettagli del prodotto

Place of Origin: China

Marca: E-link

Certificazione: ISO9001, CE, FCC, RoHS

Model Number: LNK-Convert-Sony

Documento: E-link LNK-Convert-Sony C....0.pdf

Termini di pagamento e di spedizione

Minimum Order Quantity: 1pcs

Prezzo: Negoziabile

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Ottieni il miglior prezzo

Contatta ora

Specificità

Descrizione

Specificità

Evidenziare:

MTBF:	≥100000 hours	Working Humidity:	0~95%
Working Temperature:	-20℃～+70℃	Dimensions (W x H x D):	70mm x 55mm x 18.5 mm
Cable:	30pin LVDS Cable	Mass:	30g

MTBF:	≥100000 hours
Working Humidity:	0~95%
Working Temperature:	-20℃～+70℃
Dimensions (W x H x D):	70mm x 55mm x 18.5 mm
Cable:	30pin LVDS Cable
Mass:	30g

Descrizione

HD/3G-SDI to HDMI Converter with Loop Output

Product Advantages

► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);

► SDI Output Automatic reclocking 270Mbit/s - 1.48Gbit/s -3Gbit/s

► Compliance with HDMI1.4B 3D and HDCP1.2 standard

► Support HDMI video resolution up to 1920*1200@ 60Hz

► Board and camera management via RS232/TTL

► Board and camera management via RS485/TTL

► Power supply: 9 to 12 VDC, 6 W (including camera)

► Dimensions (W x L x H):70mm x 55mm x 18.5mm

► Camera output 30pin LVDS Cable

Overview

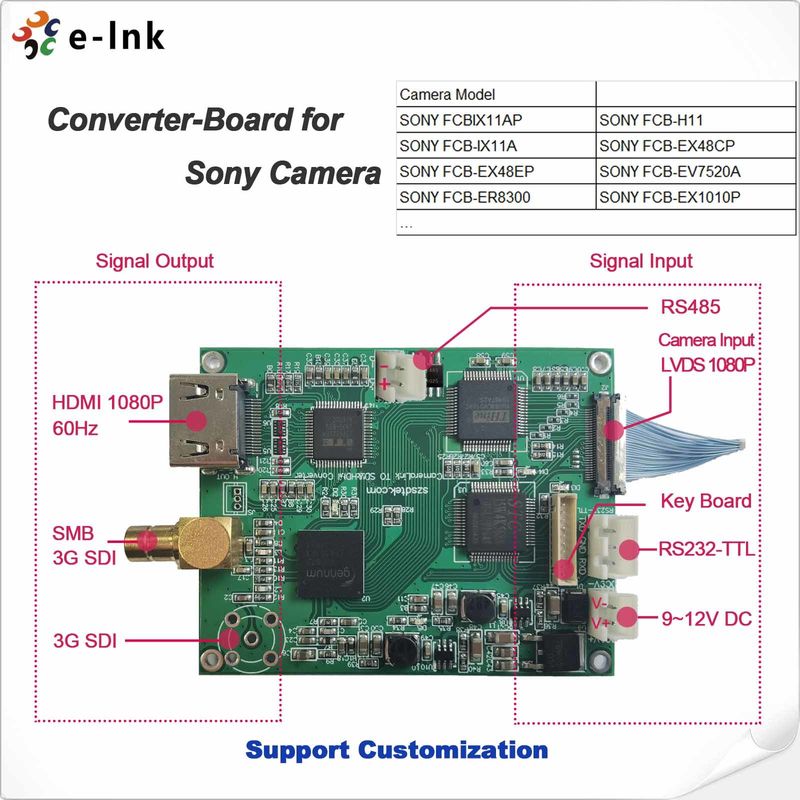

This HDMI Board of SONY HD movement, is a designed for SONY FCB HD integration module research and design, and is compatible with SONY FCB-EH3410 / FCB-EH3310 / FCB-EH3150 / FCB-EH6300 / FCB-EH6500 / FCB-EV7500 / FCB-EV5500 / FCB-EV7100 / FCB-EV7300 / FCB-EV7310 / FCB-EV5300 and so on. This widely used control panels, can be applied to aerial photography, amblyopia, and video conferences, medical devices or other specialized equipment.

Technical Indexes

Input Analog	30pin LVDS Cable
Input Digital	30pin LVDS Cable
Video output HD	270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) SMPTE425M3Gb/s Mapping(3G-SDI) SMPTE424M 3Gb/s serial interface(3G-SDI)
HDMI Video	1080P@50/59.95/60Hz,( Max 1920*1200@60Hz) 1080P@23.98/24/29.97/30Hz, 1080i@50/59.94/60/Hz, 720P@23.98/24/29.97/30Hz, 720P@50/59.94/60Hz
Camera control interface	RS-232 control
Power Requirements	9 to 12 V DC
Mass	30g
Cable	30pin LVDS Cable
Dimensions (W x H x D)	70mm x 55mm x 18.5 mm
Working Temperature	-20℃～+70℃
Storage Temperature	-40℃～+80℃
Working Humidity	0~95%
MTBF	≥100000 hours

Ordering information

Model	Description
LNK-Convert-Sony	Input: 30pin LVDS Cable RS232 TTL, RS485, Keyboard, 9-12V DC input Output: 2X3G/HD-SDI Output 1XHDMI 1080P 60Hz Output
